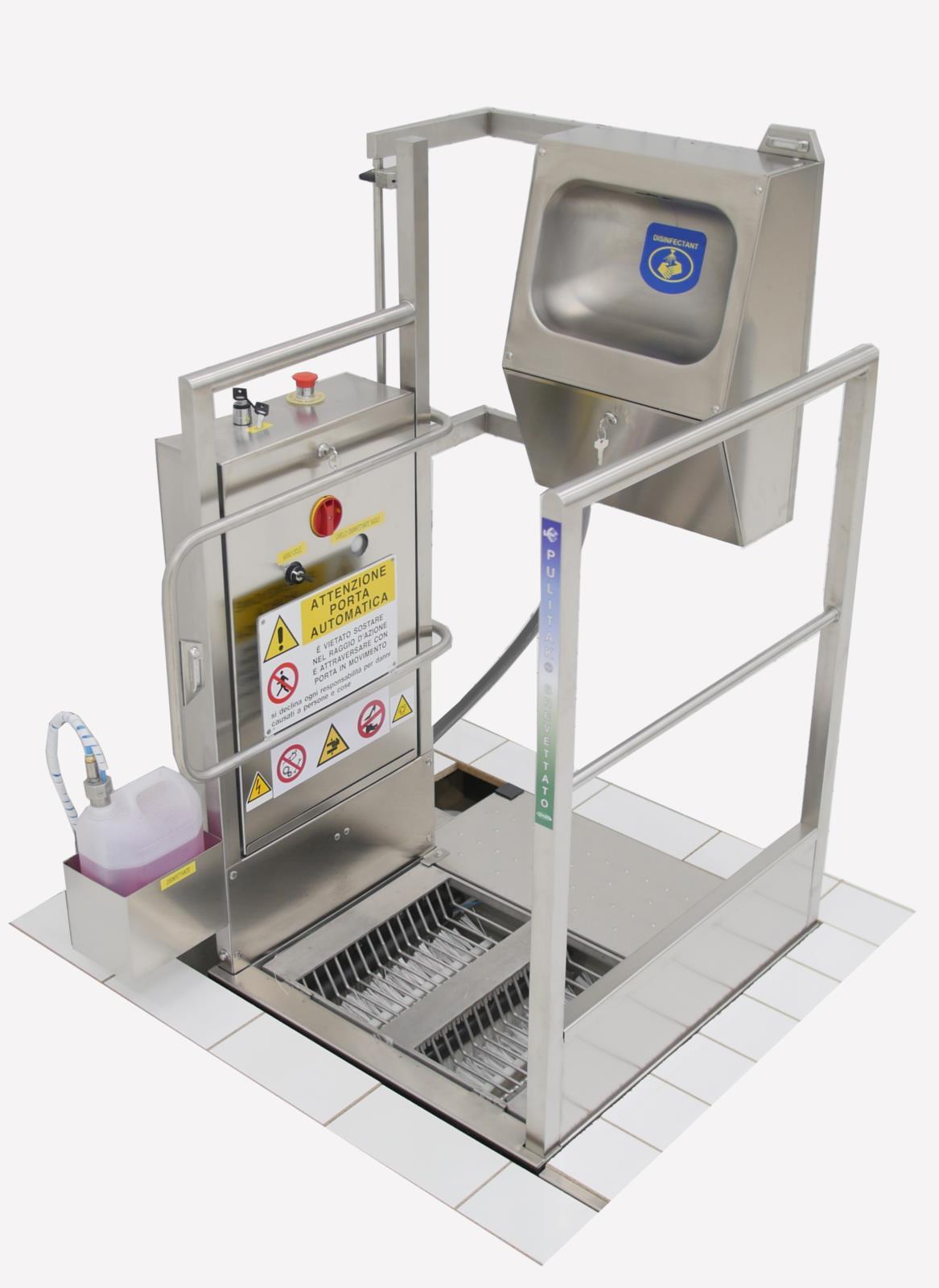

In the evolution of PULITAK, we projected the ERGONOMIC model ERTIK: thanks to this device the passage of the operator is simple and comfortable.
ERTIK is at floor level without any step that could make the walk-through difficult. For soles cleaning, the system has 5 brushes cleaning the upper part.
Innovative element of this machine is the position of the hand nebulizer: it is set up on the exit gate. The operator can then perform the sanitizing steps avoiding the uncomfortable twist of the body
At the end of the process the gate with the nebulizer opens completely allowing the passage of the operator while a rotating barrier prevents the passage of other people. Disinfection takes place automatically: in the supply system of the tank, a detector is present: its function is arresting the system when the liquid is at a low level, while the machine is reactivated when a proper quantity is present.
Technical features:
Dimensions:
Width: mm 680 (if closed, photo below)
mm 1050 (if opened, photo above)
Length: mm 760
Height: mm 1250
Manufacturing st. steel Aisi 304 scotch-brite finished
Activation with electro-pneumatic system
